Clays, Fuller's Earth, and Sorbents Materials

Removes contaminants such as acids, gums, surfactants, varnishes, soaps, color bodies, polar compounds and oxidation products from hydrocarbon and synthetic oils.

Earth SorB™

Earth SorB™ Description:

A Lightweight, Porous, Non Swelling Clay Media with a Complex chemical formulation of Magnesium and Alumina Silica forming spear like structures. AKA Sepiolite and Palygorskite is excellent filtration and clarification properties for Petroleum based fluids and Gases.

THE MINERALS ARE ASSOCIATED WITH MAGNESITE (MAGNESIUM CARBONATE), THE PRIMITIVE SOURCE OF BOTH MINERALS BEING A SERPENTINE.

Sepiolite is a non-swelling, lightweight, porous clay. Unlike other clays, the individual particles of Sepiolite have a needle-like shape. The high surface area as expressed in M2/gm. and porosity, as well as the unusual particle shape of this clay accounts for outstanding colloidal properties and reinforcing characteristics. This valuable material is applied in a wide range of industrial applications. Chemically, Sepiolite is a hydrated magnesium silicate. Its structure can be described as chain-like, producing needlelike particles instead of plate-like particles of other common clays. There is little negative charge on the crystal lattice resulting in low cation exchange capacity.

The Alumina and Magnesium structures form octahedral oxygen and hydroxyl groups containing Al and Mg ions in a chainlike inverted structure. These inverted tetrahedral occur regularly and cause channels through the structure. Giving the clay a high surface area unlike many commonly used materials

Applications:

Jet Fuel Lubricating Oil Petroleum Vacuum Pump Fluids Diesel Fuel Liquid Natural Gas Fuel Oil Liquid Petroleum Gas Kerosene Hydraulic Fluids Insulating Oils Quenching Oil

Earth SorB Brochure

Earch SorB Spec Sheet

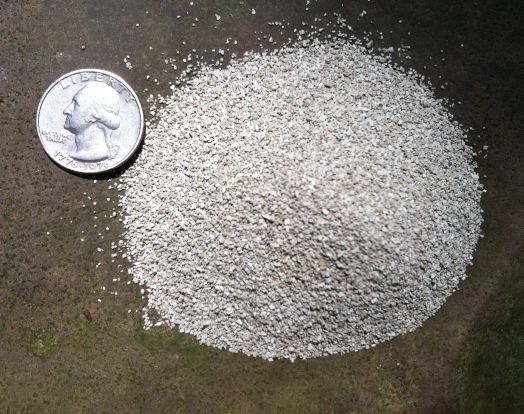

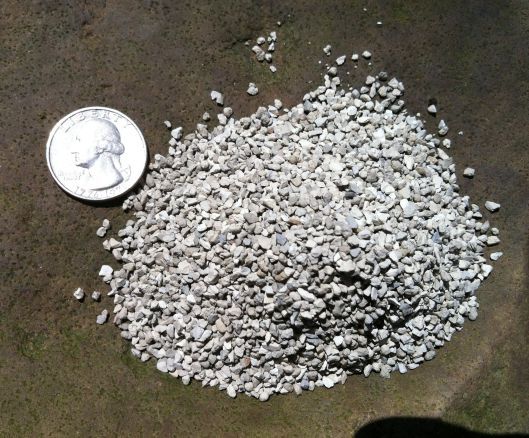

Fuller's Earth 8/16 mesh

Fuller's Earth 30/60 mesh

Fuller's Earth: a.k.a. attapulgite, palygorskite

Fuller’s Earth Description:

Activated Clay is commonly used to remove surfactants and additives from jet fuel, kerosene, diesel and other fuel oils.  It also removes products of oxidation and acids from hydraulic and lube oils. Bulk Fuller's Earth for acid removal and surfactant removal in refineries, transformer repair shops, and other industries.

Applications:

Removal of Acids, Oxidation Products, Surfactants, Additives, Soaps, Colors, and other soluble contaminants from: Jet Fuel, Lubrication Oils, Hydraulic Oil, Quench Oil, Insulating Oil, Mineral Spirits, and Solvents

Elements:

• Bag:
• Canister:Fuller's Earth Cross Reference Guide
• Bulk: 40 or 50 pound bags, 2000 pound super sacks, Rail-car

Fuller's Earth for Fuel Treatment

Fuller's Earth Safety Data Sheet

JF 752-3060 Manufacturing Standard Specs

JF 752-8/16 Manufacturing Standard Specs

30/60 Clarification Aid Technical Data

Fullers Earth Amount Estimation Table

Diatomaceous Earth

Description:

Diatomaceous earth is a remarkable, all-natural product made from tiny fossilized water plants. Diatomaceous Earth is a naturally occurring siliceous sedimentary mineral compound from microscopic skeletal remains of unicellular algae-like plants called diatoms. These plants have been part of the earth's ecology since prehistoric times. It is believed that 30 million years ago the diatoms built up into deep, chalky deposits of diatomite. The diatoms are mined and ground up to render a powder that looks and feels like talcum powder to us. It is a mineral based pesticide. DE is approximately 3% magnesium, 33% silicon, 19% calcium, 5% sodium, 2% iron and many other trace minerals such as titanium, boron, manganese, copper and zirconium. Diatomaceous Earth is a natural (not calcined or flux calcined) compound. Diatomaceous Earth is a natural grade diatomite. However, the continual breathing of any dust should he absolutely avoided.

Applications:

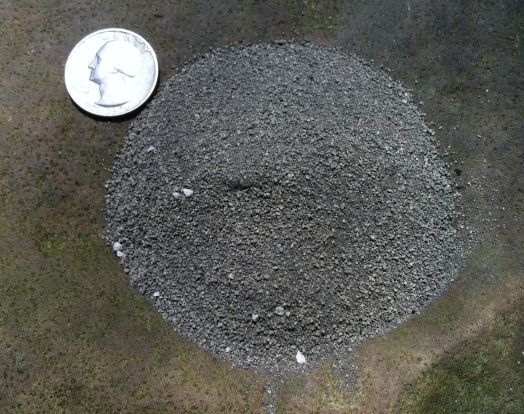

DiaBond® / GeoBond® absorbs over 120% of its weight in moisture, improves conditioning, pelleting and flow through performance in feed mills. Diabond® / GeoBond® does not bind vitamins or minerals.

Elements:

• Bag:
• Canister:
• Bulk: 40 or 50 pound bags, 2000 pound super sacks, Rail-car.

Diatomaceous Earth Manufacturing Standard Specifications >>

Bleaching Clays

Description:

Bleaching Clays are a naturally active bleaching and clarifying adsorbent. Our raw material is an intergrowth of hormite and smectite minerals which have unique adsorption and filtration characteristics. Our proprietary processing methods further enhance these qualities. This naturally active product does not contain mineral acids or other chemical compounds. All products are classified as processing aids and have Generally Recognized As Safe (GRAS) status from the Food and Drug Administration (FDA).

Applications:

Physical refining of palm oil, color removal from cottonseed, tallow, coconut, palm and other oils, Chlorophyll removal from oils with moderate chlorophyll levels, Compatible with food grade acids for enhanced chlorophyll removal

Elements:

Bleaching Clays are available in bulk or a variety of bag sizes. Shipments are made by truck, rail or shipping container. Packaged product is palletized and unitized.

Pure-Flow Technical Data - B80 Natural: Natural Bleaching Adsorbent >>

RVM Clay

Description:

RVM (regular volatile material) – granules break apart more readily with moisture.
LVM (low volatile material) – granules are the most widely used because of their chemical compatibility, hardness, and high liquid holding capacity.
Montmorillonite – from Ripley, MS is a Montmorillonite mineral in the non-swelling bentonite class. Its low bulk density and high absorbtivity allows higher liquid holding capacity. Our mineral processing maximizes the granule's micropore space. Heat treatments impart a hard inert granule with a high resistance to attrition.

Attapulgite – from Ochlocknee, GA is a Attapulgite mineral in the non-swelling bentonite class. It is commonly called Fuller's earth. It's low bulk density and high absorbtivity allows higher liquid holding capacity. Our mineral processing maximizes the granule's micropore space. Heat treatments impart a hard inert granule with a high resistance to attrition.

Hydrous Aluminosilicate – from Taft, CA is a Hydrous Aluminosilcate mineral. Its low bulk density and high absorbtivity allows higher liquid holding capacity. Our mineral processing maximizes the granule's micropore space. Heat treatments impart a hard inert granule with a high resistance to attrition. The unique properties of this mineral make it harder in its natural state than other RVM products.

Applications:

Chemical Pesticides, Biological & Biorational Pesticides, Drying Agent, Flowability Aid

Elements:

• Bag:
• Canister:
• Bulk: 40 or 50 pound bags, 2000 pound super sacks, Rail-car.

Bentoniete Clay

For details please contact us today:

• Phone: 706-675-3996
• eMail: james@jaxonfiltration.com

Additional Information:

• Attapulgite Clay Storage >>

Bulk

• 40-50 lb bag
• 2,000 lb super sack
• Railcar
